Pacific Energy Neo 1.6 Insert

Plus Front Trim & Backing Plate

$3,070.00


FOR HEATING MEDIUM SPACES

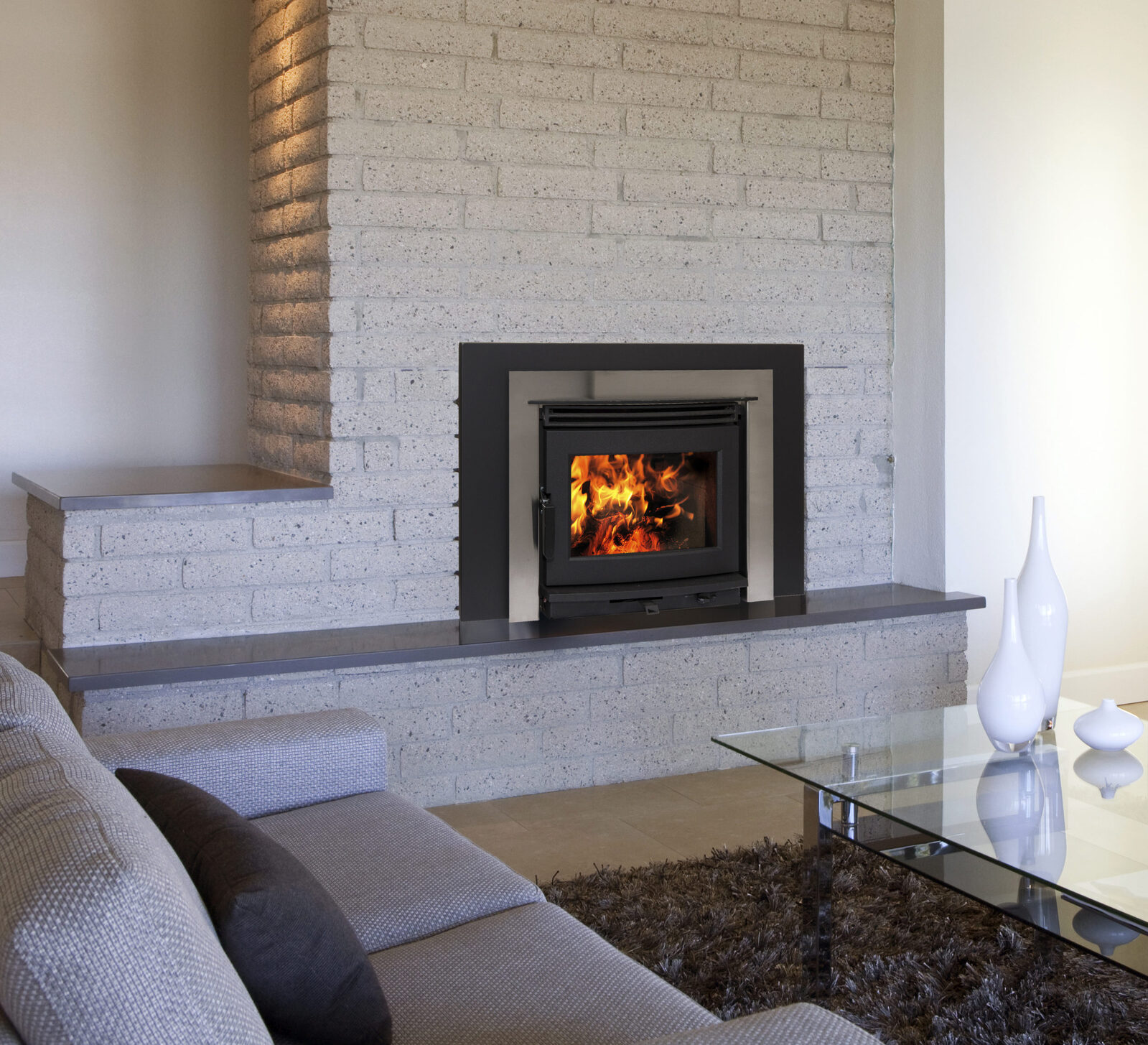

Make your smaller existing masonry fireplace a significant source of wood heat with the contemporary style of the Neo 1.6 Insert LE. Built with heavy-gauge steel, this wood insert features our industry-leading secondary combustion system, our unique high capacity stainless steel baffle and advanced heat exchanger technology for exceptional clean-burning, efficient performance.

STANDARD FEATURES

Heat Output 200-230 m2

EPA 2020 Certified
Reliable, Durable Catalytic-Free Technology
Airwash Technology for clear, clean glass
Floating firebox for extended stove life
304 Stainless Steel Baffle, insulation cover, rails and flame shield
High-tech multi-port combustion air injection system
Single-Lever Air Control
Rich metallic black finish
High capacity baffle system
Removable Cast-Iron Flue Collar
Integrated Heat Exchanger
Inside and outside combustion air capable
East-West fuel loading

TECHNICAL INFORMATION

56,000 BTU Cord Wood
23,200 BTU EPA Test Fuel

Efficiency (HHV) 72%
Emissions 1.9 gm/hr
Log Size (recommended) 16"
Log Size (max) 17 "
Firebox Size 1.6 cu.ft.
Glass Viewing Area 147 sq.in.
Weight 285 lbs.

Minimum Clearances to Combustibles

Side of Door to Adjacent Sidewall..................................................13 in.(255 mm.)

Side of Door to Side Facing (max 3-1/2 in. deep)..........................9.5 in.(155 mm.)

Top of Front Brow to Mantel Facing................................................13 in.(305 mm.)

Top of Front Brow to Mantel (max 12in. deep)................................13 in.(305 mm.)

In front of Insert ...................................................................... 48 in. (1.22m)

(NE16.AUINSA)

SKU NE16.AUINSA
Brand Pacific Energy
