Charnwood Bay BX

$3,590.00


CHARNWOOD BAY BX WOOD HEATER – HEATS 120M2

The award winning Charnwood Bay BX wood heater offers symmetrical modern Linea wood heaters – for the smaller home/room.

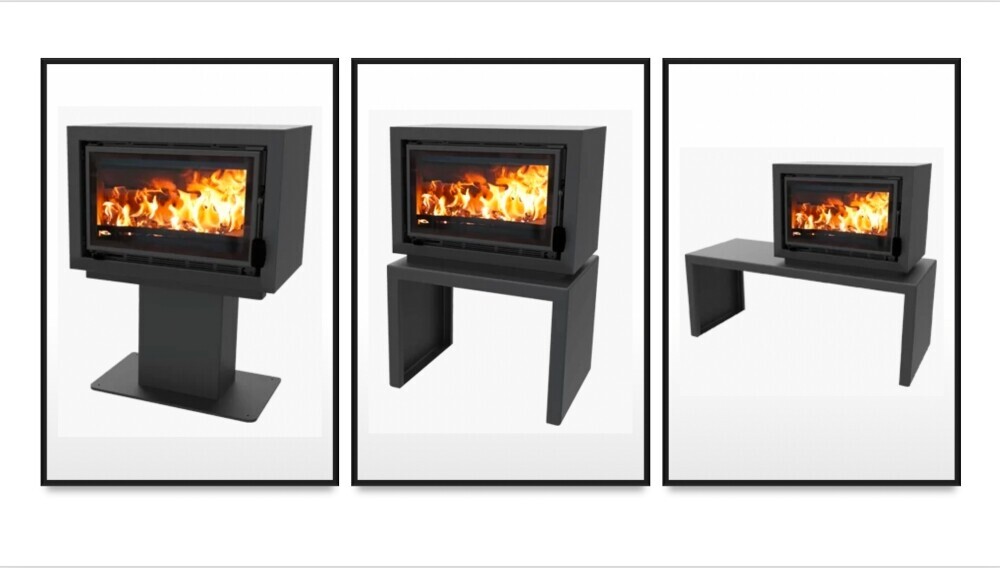

You can install the Charnwood Bay BX

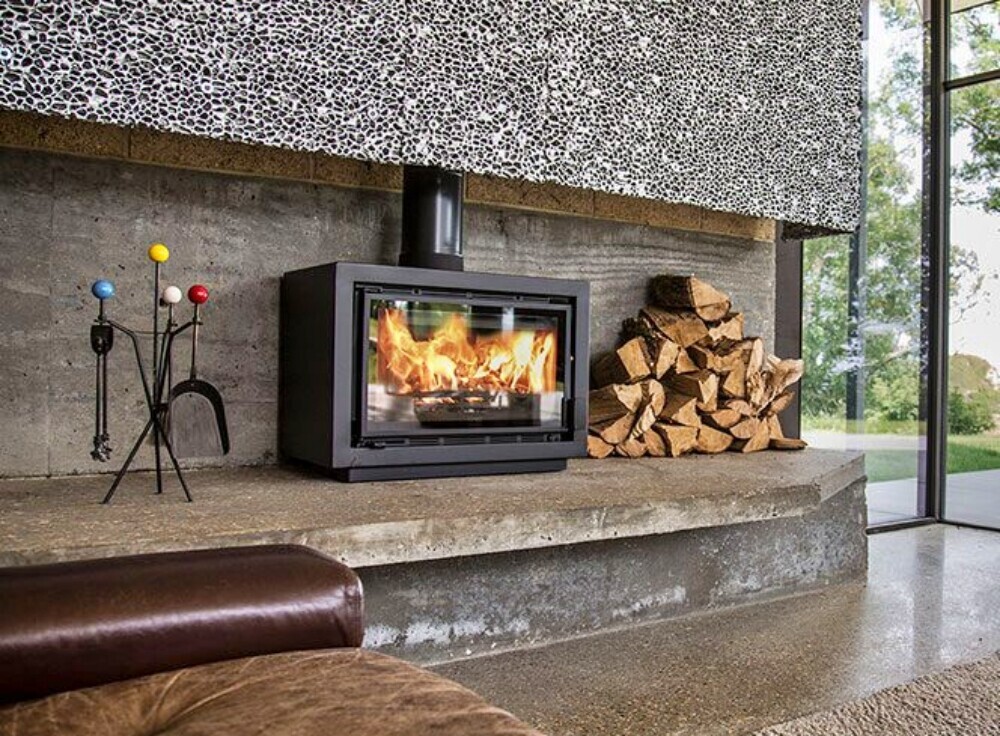

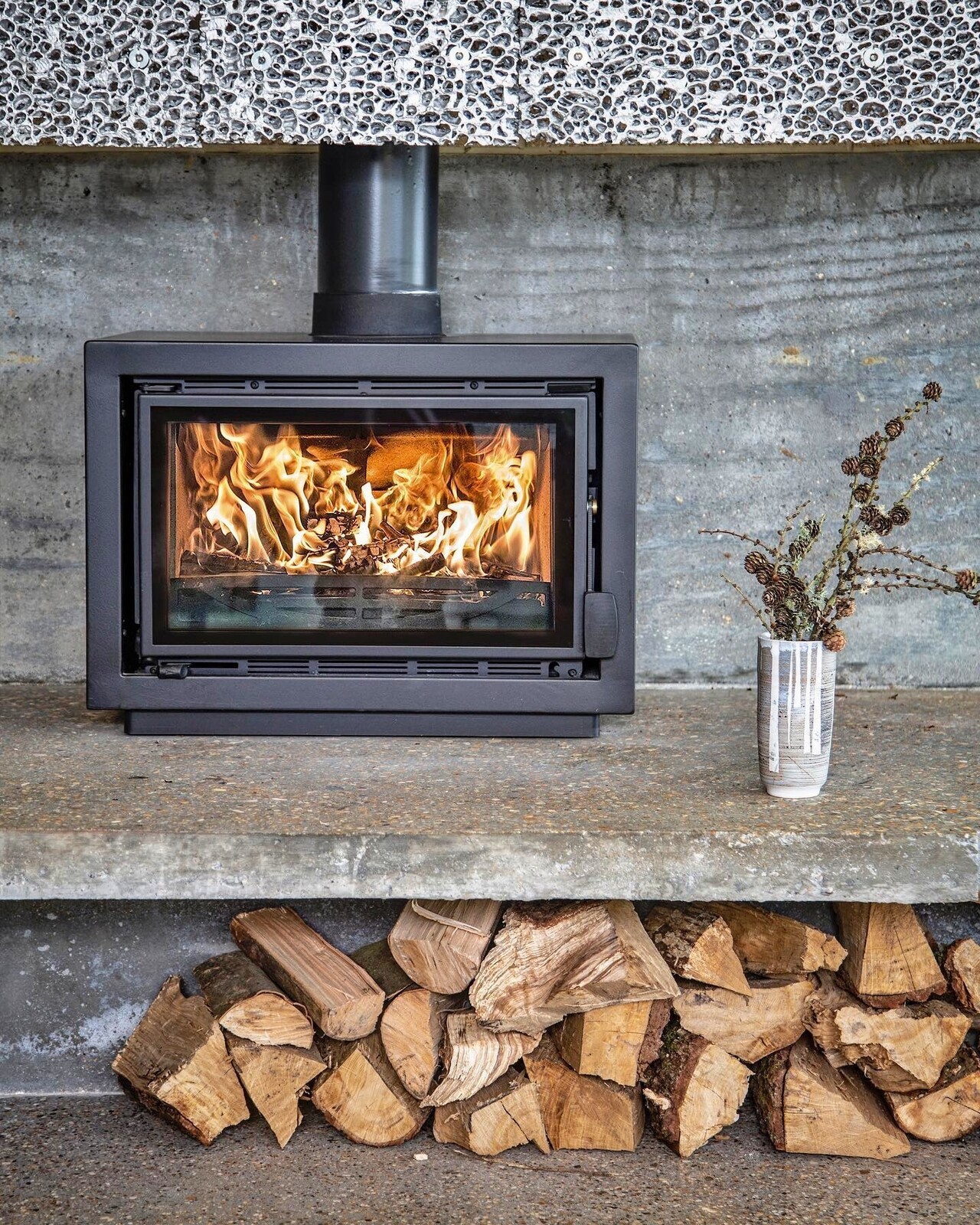

  • on a raised concrete bench

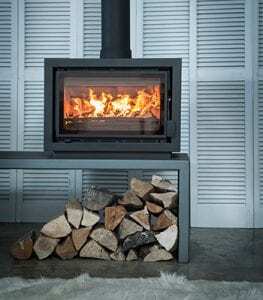

  • on the Charnwood bench / or raised base
  • on the Charnwood pedestal

Perfect for newer homes, the Charnwood Bay BX has outside air (and add the Insulated ROOM SEAL FLUE KIT) and you can install in an “air tight home” with no issues

The Bay BX is perfect for the smaller room

Specification

dimensions
height 500mm
width 688mm
depth 403mm
Clearances
Rear clearance to combustible 100mm
Side clearance to combustible 200mm
Corner clearance to combustible 70mm
Rear clearance to non combustible 25mm
Side clearance to non combustible 25mm
Corner clearance to non combustible 25mm
Info
flue size 150mm
min flue height 4mtrs
hot water No
heating capacity 120m2
efficiency 68%
Emissions 0.8grms
wood length 450mm
stove weight 105kg

WARRANTY

10 year warranty on firebox 1 year warranty on parts

(Baybx)

SKU Baybx
Brand Charnwood
